ProductsBlueprints16 Kennels






On this page: 16 Kennels Building
Benefits & Uses | Sizes & Dimensions | Blueprints/Plans


Benefits & Uses:

Centre Kitchen:
Having the kitchen in the centre:-

  • Breaks up the space - reducing disturbance to the dogs (not walking past every kennel at meal/ exercise times, less disturbance = less noise!)

  • Allows separate areas for small & large dogs (comforts owners as well as dogs)

  • Allows just one section to be heated if kennels are not full (saving costs)

  • Allows just one section to be cleaned quickly (useful if showing clients around or when new dogs are admitted

  • Noise - smaller numbers of dogs in an area is one of the best ways to reduce noise

Sizes/Dimensions:
16 Kennels Building only:
  Metric: Approx Imperial:
Building size: 17200mm x 9900mm
(170m square)
56ft 5" x 32ft (1830ft square)
Kitchen: 2800mm x 4500mm 9ft 2" x 14ft 9"

Sleeping: Metric: Approx Imperial:
4 x 2050mm x 1575mm (m2) 6ft 7" x 5ft 3" (sq ft)
12 x 1500mm x 1575mm (m2) 4ft 11 " x 5ft 3" (sq ft)

Exercise Runs: Metric: Approx Imperial:
2 x 2150mm x 2400mm (m2) 7ft 1/2" x 7ft 10 1/2" (sq ft)
1 x 2300mm x 2400mm (m2) 7ft 6 1/2" x 7ft 10 1/2" (sq ft)
2 x 2000mm x 2400mm (m2) 6ft 6 3/4" x 7ft 10 1/2" (sq ft)
1 x 1900mm x 2400mm (m2) 6ft 2 3/4" x 7ft 10 1/2" (sq ft)
1 x 2200mm x 2400mm (m2) 7ft 2 1/2" x 7ft 10 1/2" (sq ft)
1 x 2400mm x 2400mm (m2) 7ft 10 1/2" x 7ft 10 1/2" (sq ft)
2 x 2950mm x 2400mm (m2) 9ft 8" x 7ft 10 1/2" (sq ft)
8 x 1500mm x 2400mm (m2) 4ft 9" x 7ft 10 1/2" (sq ft)
2 x 1600mm x 2400mm (m2) 5ft 3" x 7ft 10 1/2" (sq ft)


Plans for 16 Kennels Building only:

Plan sizes: A2 Paper (approx 420 x 594 mm / 16.5"x 23 3/8")

3D image sizes: A3 Paper (approx 297 x 420mm / 11.69 x 16.5)


Kennel Plan
Shows the sizes of kennel sleeping areas and runs
(1st of 3 Plans used for Planning/Zoning Permission,
Licensing by Dog Warden, Environmental Health Officer, Vet)
Kennel Design Kennel Plan

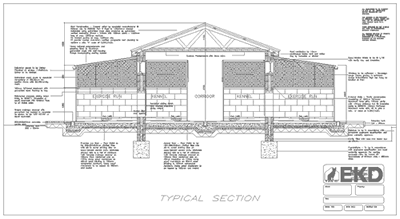

Typical Section Plan
shows a cross-section looking 'through' the building, giving heights, how the building looks from the end, fall/slope in the floor.
(2nd of 3 Plans used for Planning/Zoning Permission,
Licensing by Dog Warden, Environmental Health Officer, Vet)
Kennel Design Typical Section Plan

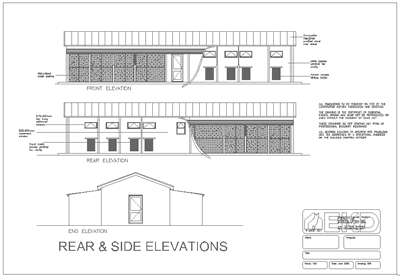

Rear & Side Elevations Plan
Shows views which help to visualise the building
(3rd of 3 Plans used for Planning/Zoning Permission,
Licensing by Dog Warden, Environmental Health Officer, Vet)
Kennel Design Elevations Plan

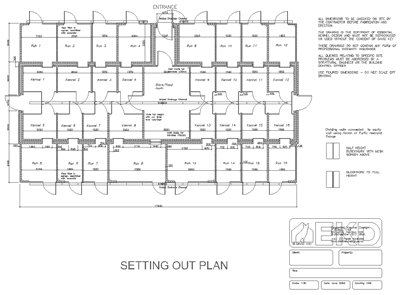

Setting Out Plan
Gives the builder all the dimensions for setting out the building's internal & external walls at the start of the build
(Used for Building)
Kennel Design Setting Out Plan

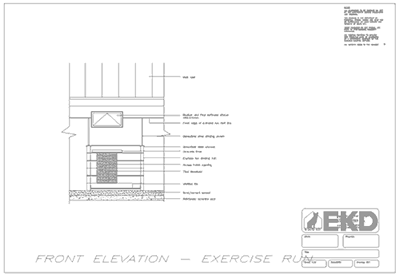

Exercise Run Plan
shows a 'slice' of the building which helps visualise the construction
(Used for building)
Kennel Design Exercise Run Plan

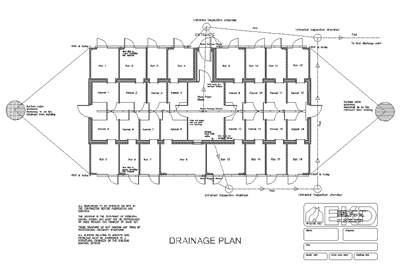

Drainage Plan
Shows the drainage route
(Used for building)
Kennel Design Drainage Plan

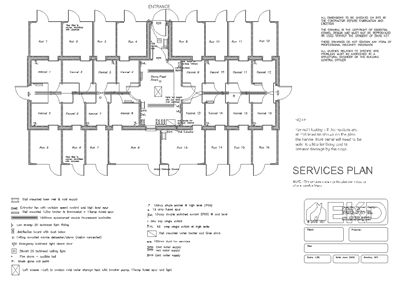

Services Plan
Shows suggested mechanical/ plumbing/ heating/ ventilation and electrical services
(Used for building & services consultants/contractors)
Kennel Design Services Plan

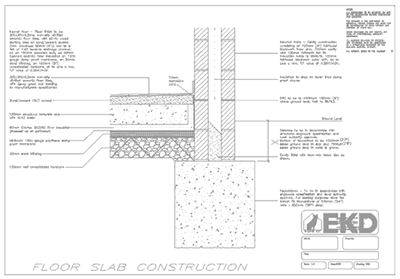

Floor Slab Construction Plan
Shows how to construct the floor
Kennel Design Floor Slab Construction Plan


Engineer's Details Plan
Shows additional information provided by a Structural Engineer
(Used for building/ building regulations)
Kennel Design Engineer's Details Plan

16 Kennels options:

  • 3D images:
    We do not have 3D images for the 16 kennels.
    However, when you purchase, you could choose the 3D images from the 12 kennels or 20 kennels.
  • Walkway or Extra Room:
    Please contact us if you require additional areas in or around the 16 kennels building itself

Other kennel options:
